Configuration of air handling units

Housing Panel finishing Control devices Made-to-measure

omkasting anchor

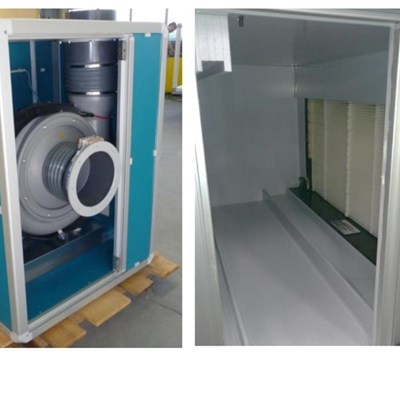

Casing

DIWER EVO

DIWER EVO : with thermal separation and unparalleled energy efficiency

DIWER TE

DIWER TE : with thermal separation, an economical hybrid solution


*Type*	*Thermal insulation*	*Cold bridge factor*	*Leakage loss casing*	*Mechanical stability*	*Leakage loss filter bypass*
DIWER EVO	T2	TB1	L1	D2	F9
DIWER TE	T2	TB2	L1	D1	F9

The frame is suitable for a maritime environment.

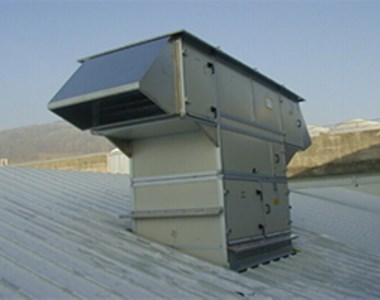

Optionally, all these types can be produced in the HG = hygiene (TÜV certified) and WF = weatherproof versions.

Versions for swimming pools, plastic versions and ATEX versions on request.

ECONOMIC versions (panels of 25 mm, limited air volume and dimensions) available on request.

keuze panelen anchor

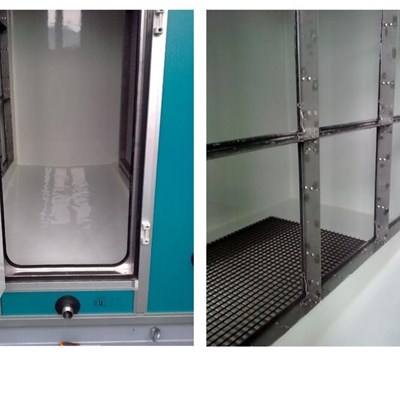

Panel selection according to the installation environment


*Air / environment*	*Galvanised*	Aluminium ALMg3	*Plasticised.* & BACSTOP	RVS AISI S04 V2A/1.4301	RVS AISI 316 V4A/1.4401
C1/C2 rural, no moisture control	✔	✔	✔	✔	✔
C3 light industrial, high humidity	-	✔	✔	✔	✔
C4 swimming pools, industry, coastal areas	-	-	✔	✔	✔
C5L aggressive industries	-	✔	✔	✔	✔
C5M maritime environment	-	-	-	✔	✔
C5X extreme environment	-	-	-	-	✔ *

* Please consult us in case of special working conditions or extreme installation environment

→ 4 standard RAL colours: 7035 70, 7015 70, 5021 50 and 9002 90

→ Special coatings on request

→ Antimicrobial coating film BACSTOP

Suitable for ventilation and air conditioning equipment where hygiene standards are particularly high and cannot be guaranteed by normal cleaning.
The requirements for indoor air (IDA) are particularly high, especially in the medical and pharmaceutical sectors, but also in production processes: a permanent antimicrobial coating is an additional guarantee.
The substances contained in the surface coating reduce or even inhibit the growth of multi-resistant microbes and bacteria. BACSTOP activates its protective properties when conditions are favourable for bacteria, moulds and algae and also has a double effect: on the one hand it inhibits the growth of germs, on the other hand it eliminates existing ones!
(Proven effect according to ISO 22196: 2007 / JIS Z 2801: 2006 / ASTM E 2180-07).

(a)  Beschermfolie
(b)  BACSTOP-film (van 100 µ tot 200 µ)
(c) Hechting laag
(d)  Oppervlakte behandeling
(e) Zinklaag
(f)   Staalplaat
(g) Zinklaag
(h) Oppervlakte behandeling

regelapparatuur anchor

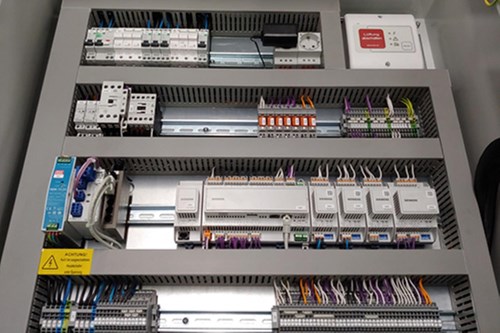

Control equipment

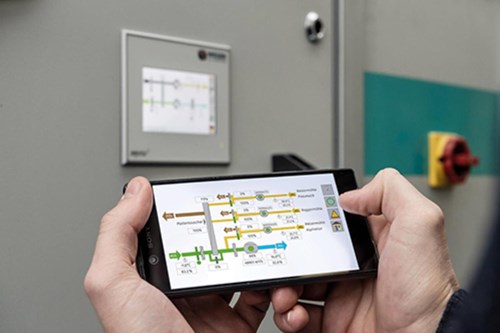

IMPERIA 51

IMPERIA 51 is the new control system for our air handling units. Its innovative user interface makes it easy to operate and allows you to set many different parameters for optimum performance of your air handling unit - for perfect air temperature, humidity and air quality. With IMPERIA 51, you stay in control.

maatwerk anchor

Tailor-made

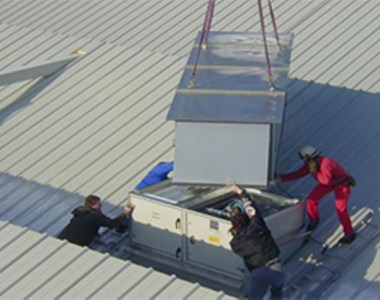

A lot can be achieved with modular air groups, but we go further!

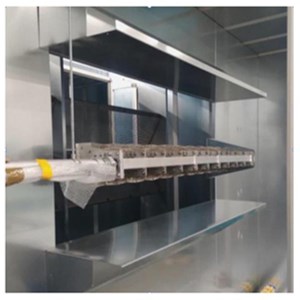

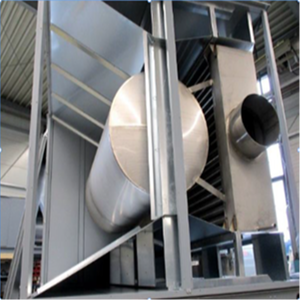

Weger also produces air groups down to the millimetre, with enormous flexibility in components and construction options.
Whatever your challenge, WEGER offers the solution for your most complex projects!

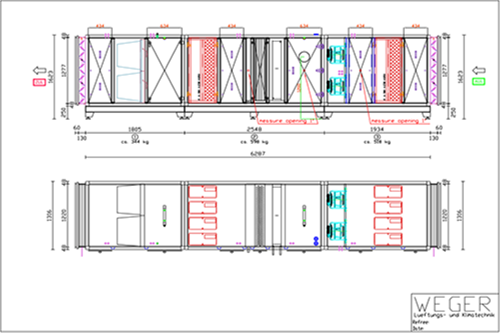

We think along with you and together create a design that meets your needs and requirements, which is visualised with Autocad drawings.
After order, we can also create IFC-BIM files so that the air group can be presented in 3D.
